Digital Bioelectrical Impedance Analysis For Body Composition Analyzer
Product Specifications:
| | |
| | Weight, height, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat
percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism,
waist-to-hip ratio, etc. |
Body composition analyzer | 8-point contact electrode, multi-frequency bioelectrical impedance (BIA) |
| Frequency: 20KHz, 100KHz |
| Impedance measurement range: 10-2000Ω |
| Current: ≤420±20μA |
| Segments:5 parts (left arm, right arm, trunk, left leg, right leg) |
| | Measure range: 20-205cm |
| accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable |
| Measure mode: ultrasonic probe |
| | Measure range: 5-500kg |
| accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable |
| Measure mode: precise balanced sendor |
| Display Mode | HD LCD 10.2-inch display touch system, play pictures and videos in standby mode |
| Report Output | Thermal printing/A4 Report/Test result send to mobile |
| Coin operated(Optional) | Intelligent multi-currency recognition |
| Power Supply Voltage | AC160v-250v,50HZ |
| Data Output Format | Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45 |
| Overall dimension | 550*390*2350mm /LWH(mm) |
| Packing Size | 180*49*22cm(20kg) 68*49*40cm(25kg) 0.33CBM |
| Identify(Optional) | Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc. |
Certifications:
Product Description:

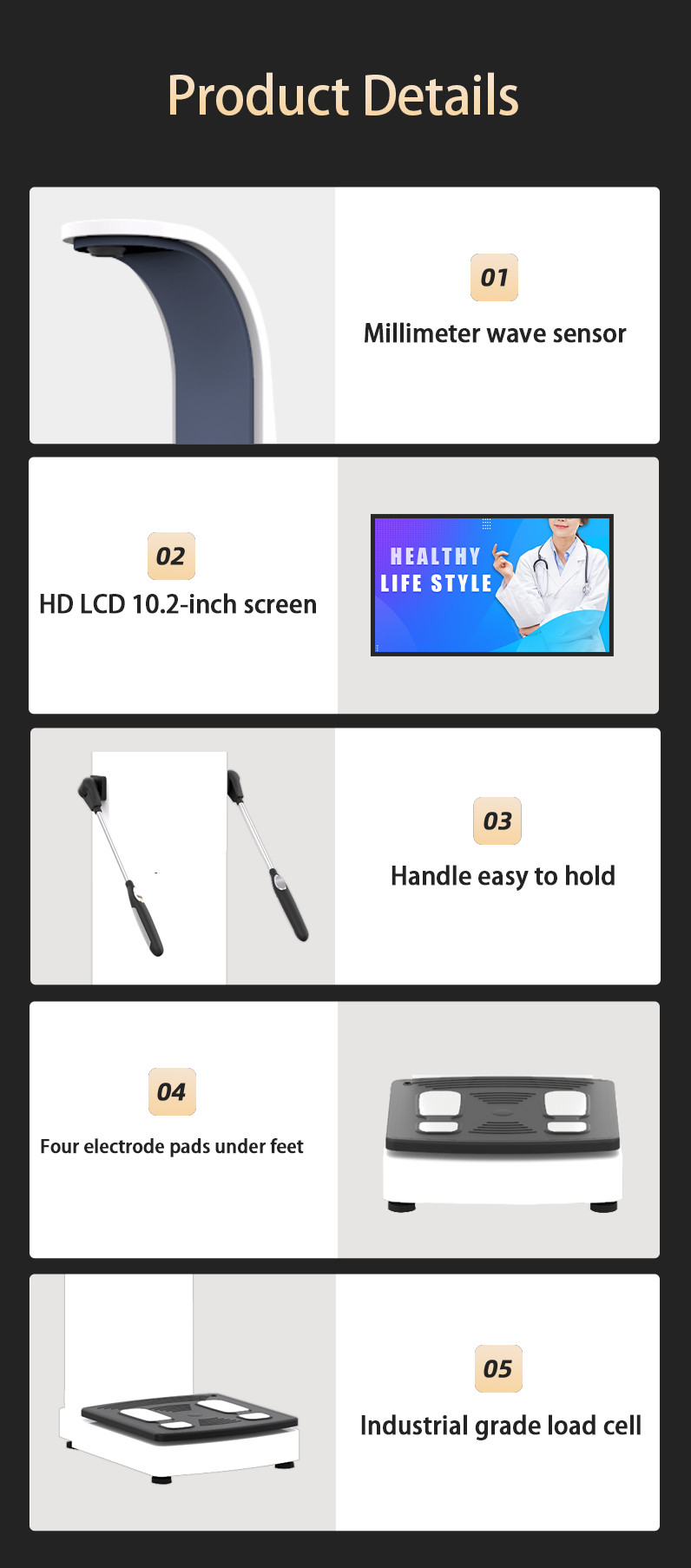

SH-V9F Height Weight Body Fat Machine Functions:
1.Face recognition (optional)
2.Fully automatic measurement of height and weight, automatic sensing system
3.Ultrasonic technology to measure height (temperature compensation)
4.Precision balance beam resistance strain sensor
5.Intelligent calculation of BMl
6.HD LCD 10.2-inch display touch system, play pictures and videos in standby mode
7.Coin operated/paper money (optional)
8.8-electrode human bioelectrical impedance method (BIA)
9.High-speed thermal printing, automatic printing of measurement results
10.Displays indoor temperature and current time
11.Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
12.It can be connected with a computer, and the results are transmitted to the customer's Software.
13.Supports multiple languages and can switch languages on the screen.
14.Expansion: barcode/QR code, IC/ID card etc.

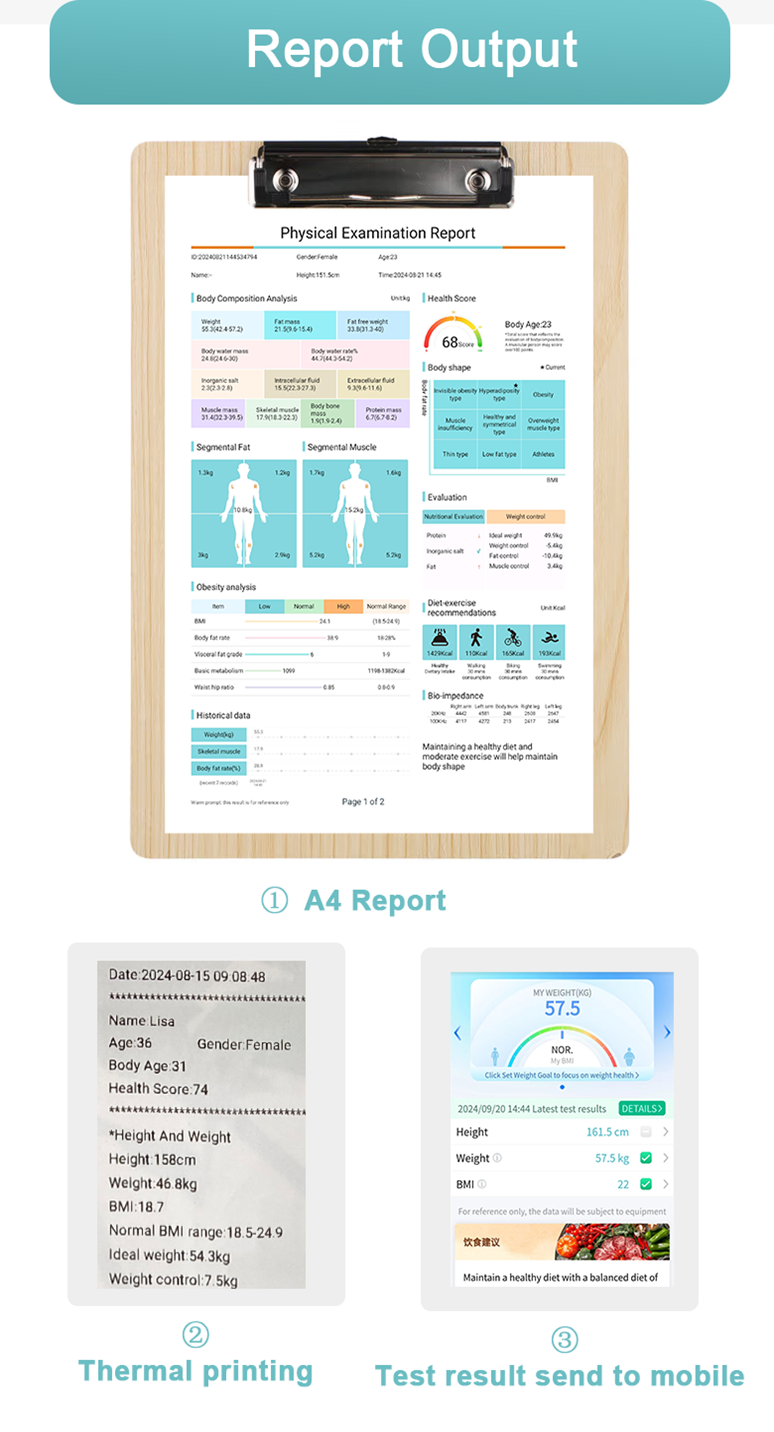

15.Report Output:Thermal printing, test result send to mobile, A4 printing/test result send to email/view reports on the cloud platform(optional)
